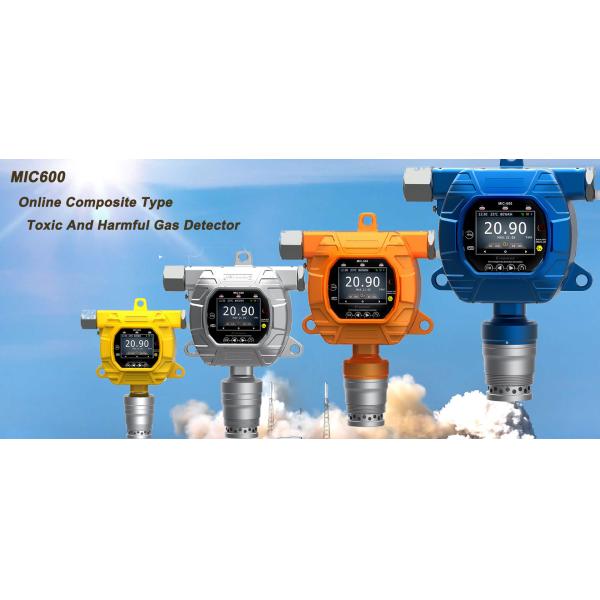

MIC600 Online Composite Toxic and Harmful Gas Detector
OVERVIEW
MIC600 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of multiple types of gases in the filed.The types for detection are more than 500 types.
With a 4-20 mA analogue output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high CH4 levels in the working environment.
Simple to install service and calibrate, MIC600 requires no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
Strong, durable and explosion-proof shell and fluorocarbon surface treatment process are suitable for the use at a variety of hazardous places and corrosive environments, it is wear-resistant. It has been is widely used in the industries such as petroleum, chemical, metallurgy, refining, gas transmission and distribution, biochemical and pharmaceutical, and so on.
Simple calibration procedure.
Easily integrated into a control system
| Gas | CH4 (Methane) | Range | 0-50000PPM; 0-100%LEL ; 0-100%Vol. other ranges can be customized |
| Size | 210×170×85mm (L×H×W) | Weight | 1.8 Kg |
| Installation method | Pipeline Type Wall Mounting Type | Display | 2.5-inch high-definition color screen |
| Environment | Temperature: -40 ℃ ~ + 70 ℃ Humidity: ≤10 ~ 95% RH (regular) | Approvals | IP66; Exd Ⅱ CT6 |
| Accessories | Manual, qualification certificate, warranty card, outer packaging box |
| Optional items | Alarms;Wireless Transmission;Pretreatment System; SD Card; Temperature and Humidity Measurement; Accessory for connection with computer for monitoring. |
| Installation Type Accessories (Optional configuration) | Wall mounting bracket, mounting clips for fixation on the pipes (1/2", 3/4" pipe),
stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...),
rain cover, 24VDC or 220AC sampling pump (sampling distance is 10 m), vacuum pump (sampling distance is 40 m), 24V switching power supply, pressure reducing valve, flow meters |
FEATURES
Gases to be detected
Arbitrary combination of multiple types of gases such as toxic gases, oxygen gas, carbon dioxide, flammable and explosive gases,TVOC, and so on.
*Optional configuration: it is possible to simultaneously detect any 1 ~ 6 gases .
Rich human-machine interface
2.5-inch high-definition color screen, display the information such as real-time concentration, alarm, time, temperature, humidity, storage, and so on.
Large-capacity Data Storage
Standard configuration is the data storage capacity for 100, 000 entries; SD card storage function is optional configuration.
Temperature and Humidity
Temperature: -40 ℃ ~ + 120 ℃,
Accuracy: 0.3 ℃
Humidity: 0-100% RH,
Accuracy: 3% RH
Multiple Alarm Modes
The default option is 1-way, and it is possible to select 3-way passive contact (dry contact) output, level III alarm, and the alarm point can be set. Field sound & light alarm (optional configuration).
Wireless Transmission
Optional function is possible to transfer data wirelessly to the cell phone, remote monitoring center, monitoring computers and other monitoring equipment, which will utilize the upper-level host to realize the functions of data analysis, storage, printing
or the like on the computer.
APPLICATION
All the cases which requires the fixed installation, and online detection of gas concentrations such as Chemical Industry, Power Generation Plants, Natural Gas Pipeline & Processing,Pulp & Paper Industry, Waste Water Treatment Plants, Commercial & Industrial HVAC, Acetylene Gas Bottlers & Users , Ice Skating & Hockey Arenas and so on.
